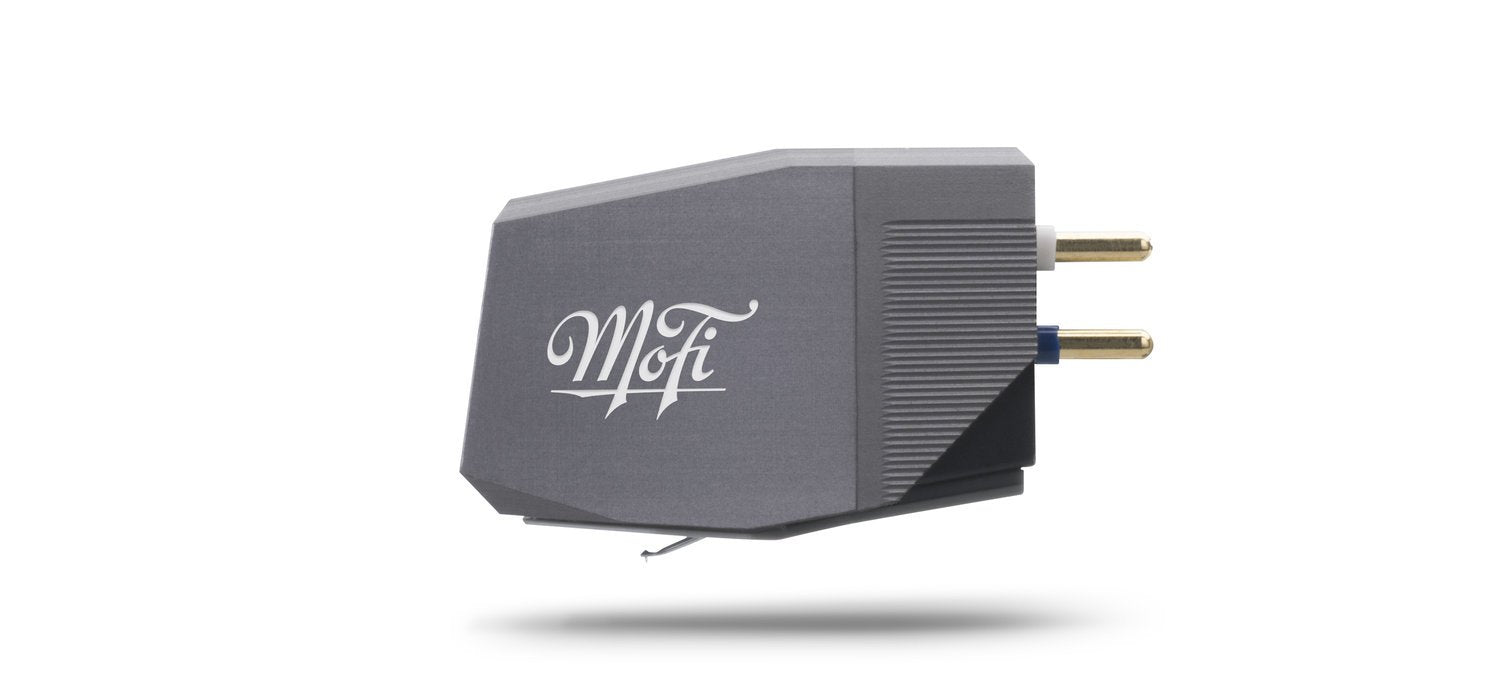

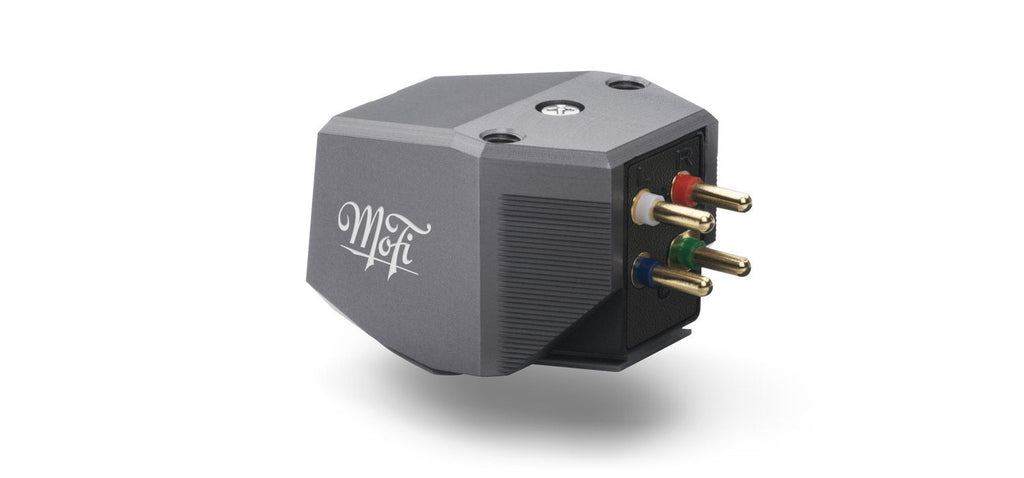

Mobile Fidelity MasterTracker Cartridge
MoFi cartridges are designed by looking at where a record starts: On a cutting lathe like the model used at Mobile Fidelity Sound Lab. MasterTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally makes a record’s grooves. Employing two low-mass, powerful magnets aligned in a V formation parallel with the record grooves, MasterTracker accurately extracts music from your LPs and features stellar tracking ability.
WELL-DAMPED BILLET ALUMINUM BODY
The well-damped billet aluminum body controls resonances for tight, accurate bass reproduction. MasterTracker has the lightest-weight magnets in the Tracker Series, delivering the kind of detailed, open performance normally attributed to high-end moving-coil cartridges.
MICRO-LINE DIAMOND STYLUS
By using a Micro-Line diamond stylus shaped like the cutting head of a record lathe, MasterTracker traces vinyl groove walls with microscopic precision.
- Type: Dual Magnet (MM) Stereo
- Stylus: Micro-Line
- Output Voltage: 3mV
- Frequency Response: 20 - 25,000Hz
- Weight: 9.7g
- Tracking Force: 1.8 - 2.2g
- Impedance: 47kOhm
- Capacitance: 100pF
- Compliance: Static compliance : 40 x 10e-6/dyne, Dynamic compliance : 10 x 10e-6/dyne
