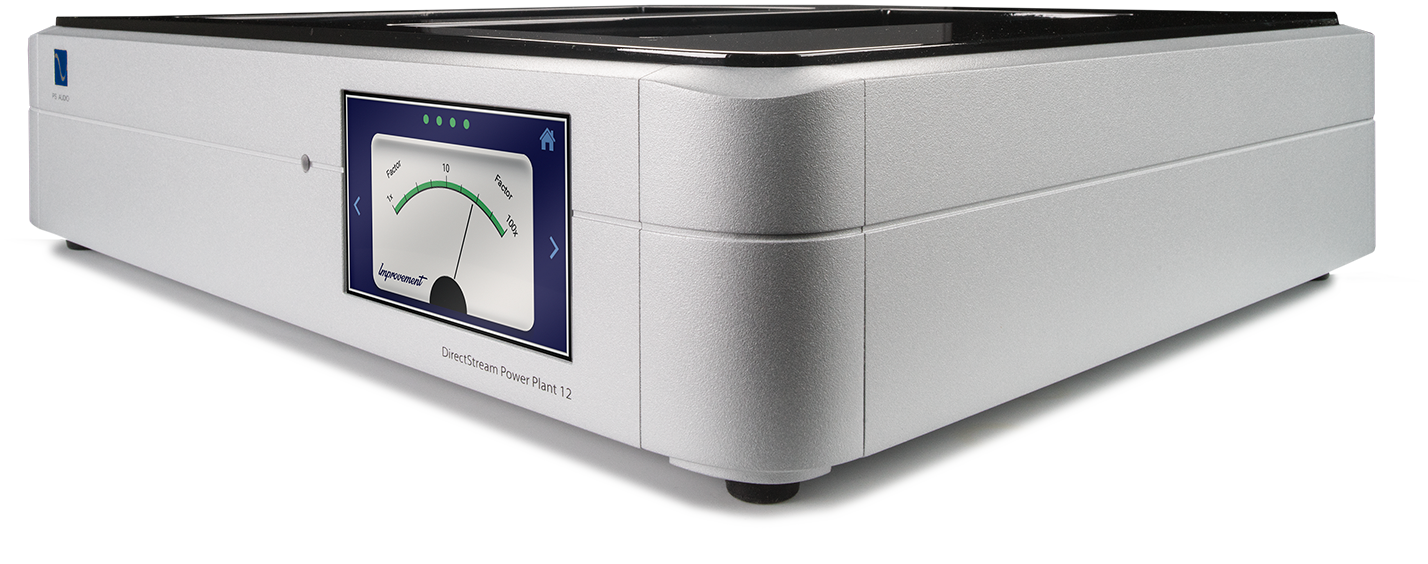

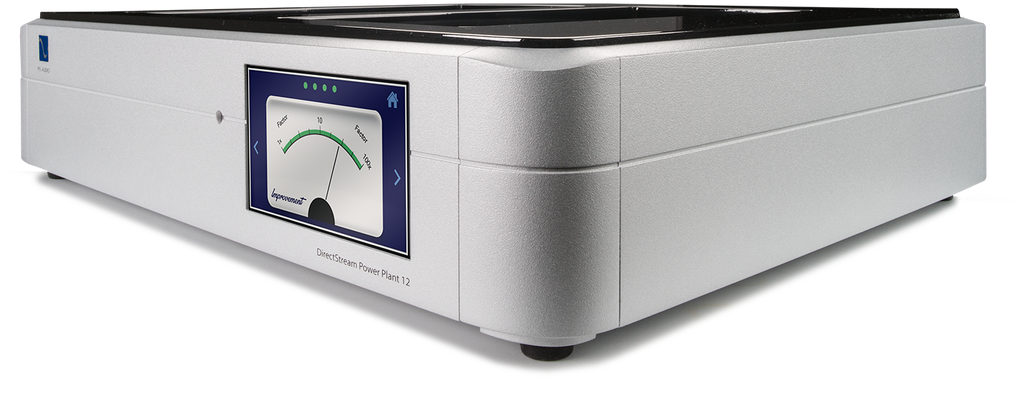

The DirectStream Power Plant 12 is the successor to the venerable P5 Power Plant. The P12 is completely redesigned from the ground up with three times lower output impedance, lower distortion, a new FPGA based DSD sine wave generator, and an improved level of performance never before attained by any Power Plant of its size. Power Plants take your incoming AC power and regenerate new sine-wave-perfect, regulated high current AC power. In the process of regeneration any problems on your power line such as low voltage, distorted waveforms, sagging power and noise are eliminated. The results are both audibly and visually stunning when powering either audio or video products. Further, the level of protection afforded connected equipment is extraordinary. Feel 100% confident that a P12 will provide pure and safe power under any condition.

Available in Black or Silver Finish.

Features:

• Built in Boulder, Colorado
• 1200 VA output
• 3X lower impedance than P5

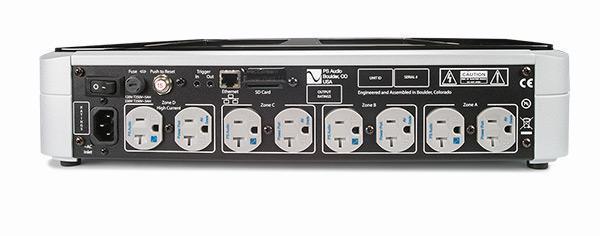

• 8 outlets US
• 15 amp AC input US
• 120 volt regulated US
• Range 95 – 145 VAC US
• 4 EU/AU/GR/UK outlets
• 10 amp AC input EU/AU/GR/UK
• 230 volt Regulated EU/AU/GR/UK
• Range 200 –285VAC EU/AU/GR/UK
• 100% regenerated AC
• 4 outlets
• MultiWave
• Pure Sine Wave
• Integrated oscilloscope
• THD meter
• Improvement meter
• Power meter
• Control over the web
• Adjustable output voltage
• Color touchscreen
• Field upgradable

Specifications:

• Unit Dimensions: 17” W x 14” D x 4” H (43cm W x 36cm D x 10.16 cm H)
• Unit Weight: 37 lbs (16.7kg) / Shipping Weight: 48 lbs (21.7kg)
• Shipping Dimensions: 24” x 21” x 10” ( 61cm x 53cm x 25cm)
• Nominal Input Voltage: 95 – 145 VAC
• Maximum Continuous Load: 1000VA
• Maximum Peak Load: 3600VA
• Voltage Regulation: 0.5V
• Output Distortion (Resistive Load): <0.5%
• Output Distortion (Reactive Load): <0.5% 0.1% typical
• Output Impedance: <0.008 ohm
• Noise Reduction: 100kHz – 2MHz >80dB
• Efficiency: @1200 VA >85%
• Input Frequency: 45 – 65 Hz
• Under Voltage Limit: Continuous -10% of setting 15 sec duration -15% of setting
• Over Voltage Limit: Continuous 5% of setting 15 sec duration 10% of setting
• Energy Dissipation: 1020J
• Peak Current Surge: 90,000A
• Max Surge Voltage: 6,000V
• Clamp Level: 340V
• DC Trigger Configuration: Tip Positive
• DC Trigger Voltage: 5 – 15Vdc
