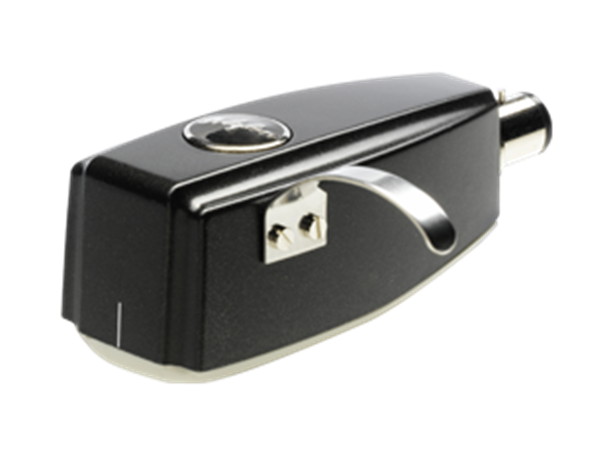

Ortofon SPU Classic G MkII Moving Coil Cartridge

In stock
The SPU Classic G MkII is known for its dynamic and powerful sound reproduction and is a Moving Coil cartridge with an 18 µm spherical stylus profile. The SPU Classic series embodies the essence of the original Moving Coils and are... Read More
Phono Cartridges & Accs. -

The SPU Classic G MkII is known for its dynamic and powerful sound reproduction and is a Moving Coil cartridge with an 18 µm spherical stylus profile.

The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.

The ST-7 transformer is a perfect match for the SPU Classic G MkII cartridge. (Sold Separately.)

Specifications:

  • Output Voltage at 1000 Hz, 5cm/sec. - 0.2 mV
  • Channel Balance at 1 kHz < 1 dB
  • Channel Separation at 1 kHz > 20 dB
  • Channel Separation at 15 kHz > 10 dB
  • Frequency Response - 20-20.000 Hz + 3/- 3 dB
  • Tracking Ability at 315Hz at Recommended Tracking Force *) > 60 µm
  • Compliance, Dynamic, Lateral - 8 µm/mN
  • Stylus Type - Nude Spherical
  • Stylus Tip Radius - R 18 µm
  • Tracking Force Range - 3.0-5.0 g (30-50 mN)
  • Tracking Force, Recommended - 4.0 g (40 mN)
  • Tracking Angle - 20°
  • Internal Impedance, DC Resistance - 2 ohm
  • Recommended Load Impedance > 10 ohm
  • Cartridge Body Material - Ground wood and resin composite
  • Coilwire Material - High Purity Copper (OFC)
  • Cartridge Colour - Black matte
  • Cartridge Weight - 28 g

*) Typical value
