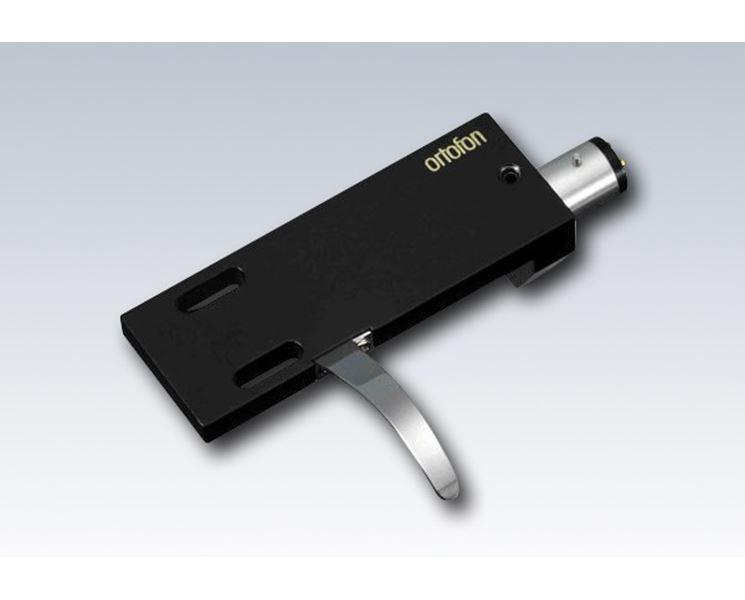

Ortofon LH-2000 Headshell

In stock
The Oroton LH-2000 is a basic high quality headshell designed specifically for HiFi applications. Providing a clean, minimalist aesthetic, the LH-2000 is great for a wide variety of cartridges. The LH-2000 comes with leadwires for easy and convenient connection. All... Read More

The Oroton LH-2000 is a basic high quality headshell designed specifically for HiFi applications. Providing a clean, minimalist aesthetic, the LH-2000 is great for a wide variety of cartridges.

The LH-2000 comes with leadwires for easy and convenient connection.

All Ortofon cartridges have a color coding of the terminals, indicating red and green for right channel, respectively the hot and ground terminal. White and blue for left channel, respectively the hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system whenever connected inside the cartridge. We recommend connecting lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, while Ortofon headshells' PINs diameter is only 1.0 mm.

Specifications:

  • Mounting Distance:    min 35.3 mm, max 43.4 mm
  • Headshell Material:    Solid aluminum build
  • Weight Without Screws:    15.5 grams
  • Headshell Length:    50.3 mm
  • Headshell Width:    20.0 mm


We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.

Features and Technical Data:

  • Universal mount
  • Solid aluminum build
  • Azimuth adjustable by means of hexagon wrench.
