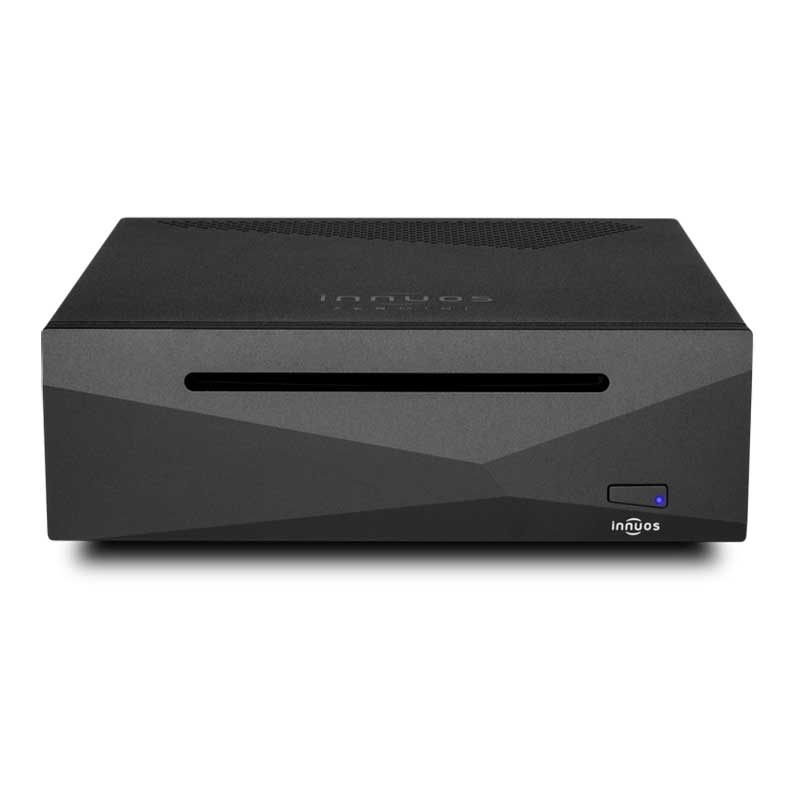

Innuos ZENmini Mk3 Music Server
The Innuos ZENmini Mk3 Music Server is the gateway server with all the full benefits of innuos, now with improved connectivity and an upgraded path for even greater flexibility.
Ideal for simple integration into multi-room systems or for those making the first step to a dedicated audio server.
The Innuos ZENmini Mk3 Music Server is a perfect solution to tidy all your CDs and the files laying around on the computer? Need an easy way to stream and listen to all your favourite music? Now there’s a simple way to store, manage and play all of it: the ZENmini.
- CD Ripper, NAS and Streamer
- Compact design with quiet, fanless operation
- Includes both analogue and digital outputs
- Can be used as Roon Core (Optional)
- Custom audio treated components
- Upgradeable with Linear Power Supply
Controlled via Innuos Sense App
innuOS allows complete Music Library management using a tablet or smartphone
With its compact footprint, low-power efficiency, quiet operation and range of connectivity, the ZENmini is a convenient and discreet music server for all your Digital Audio needs – from CD ripping and purchased downloads to streaming services and internet radio.
The ZENmini offers more than just casual usage. Floating optical and storage drives paired with a custom motherboard and premium components offer far greater musical performance than conventional computers and NAS drives.
Perfect CD Player replacement
Featuring additional Optical and Coaxial digital outputs as well has a high-resolution 24bit/192KHz Digital to Analog Converter (DAC). This means you can now connect directly to all your favourite devices such as Soundbars, AV Receivers or Integrated Amplifiers the easy way.
Using our own exclusive Innuos operating system, our servers are configured and optimized from the ground up for the perfect balance of performance and simplicity. Control your library from the comfort of your tablet or smartphone – no computer required.

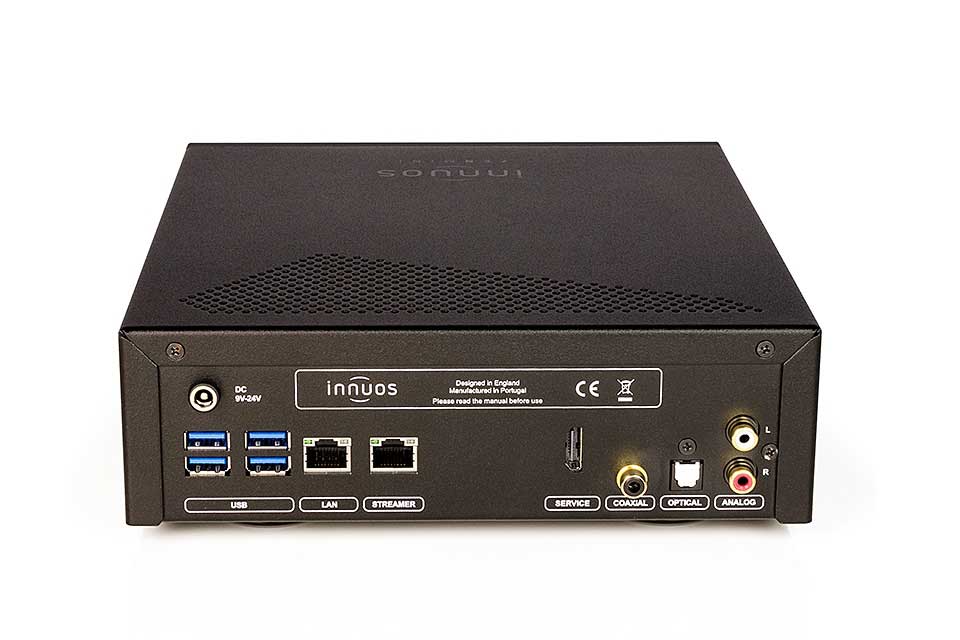

- Digital Output:
- USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
- Coaxial S/PDIF up to 24bit/192KHz
- Optical S/PDIF up to 24bit/192KHz
- Analogue Output: RCA Analogue up to 24bit/192KHz
- Ethernet: 2 x rear panel RJ45 – Bridged Gigabit Ethernet
- USB: 4 x USB 3.0
- CD Formats: Red Book
- Disc Compatibility: CD, CD-R, CD-RW
- Audio format for stored CDs: FLAC (zero compression), WAV
- Audio Formats Supported for streaming and playing: WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs
- Bit Depths: 16bit, 24bit, 32bit
User Control Interfaces
- Web Interface: Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
- Mobile: App for iPhone/iPad, Android and Windows 10
- CD/DVD drive: TEAC Slot-loading drive
- Hard Drive: 1TB WD Red HDD
- CPU: Intel Quad Core N4200
- Memory: 4GB DDR3
Streaming And Cd Storage
- UPnP/DLNA: Integrated UPnP Server
- Streaming Services: Qobuz, Spotify Connect, Tidal, Internet Radio
- Roon Compatibility: Roon Core and Roon Bridge
- Average CD Storage Time: 5 minutes
- CD Metadata: FreeDB, MusicBrainz, Discogs, GD3
- Compatible Music Systems:
- Sonos Multi-room Wireless Music System
- DLNA/UPnP compatible streamers
- USB DACs complying to USB Audio Class 2
- USB DACs supporting DSD over DoP protocol
- Selected USB DACs supporting Native DSD
- Network: Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates. Network router with at least one available ethernet port. Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
- Recommended App (USB Connection Only): iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)
- Mains Supply: DC 16V 3A for ZENmini, 230V/115V AC for LPSU (country-dependent)
- Power Consumption: 10W when idle, 25W peak
- ZENmini: 74 x 214 x 240 mm (H x W x D)
- ZENmini LPSU: 74 x 214 x 240 mm (H x W x D)
- Weight: 8,5 Kg
Available in Black or Silver Finish. Optional Linear Power Supply upgrade for improved sound quality available. Please see ordering options.
In the box:
- Innuos ZENmini Mk3 1TB Music Server
- Innuos ZENmini LPSU *optional
- Mains Cable
- DC Power Cable
- 2m Ethernet Cable
- Getting Started leaflet
